Securing Coolify with CrowdSec: A Complete Guide 2025

By /

Introduction

Crowdsec logo

Coolify is an excellent self-hosted deployment platform, but like any web-facing service, it needs robust security measures. CrowdSec provides an intelligent, community-driven security solution that can significantly enhance your Coolify setup’s protection against malicious traffic, brute force attacks, and other security threats.

This comprehensive guide will walk you through setting up CrowdSec as a firewall for your Coolify installation, including advanced features like CAPTCHA challenges and Discord notifications.

Screenshot showing Discord notifications from Crowdsec

Why Use CrowdSec with Coolify?

CrowdSec offers several advantages over traditional firewall solutions:

  • Community Intelligence: Leverages crowd-sourced threat intelligence from thousands of users
  • Behavioral Analysis: Detects attack patterns rather than just blocking known bad IPs
  • Flexible Remediation: Supports various response types (ban, captcha, rate limiting)
  • Real-time Protection: Integrates seamlessly with Traefik (Coolify’s proxy)
  • Low False Positives: Advanced parsing reduces legitimate traffic blocks

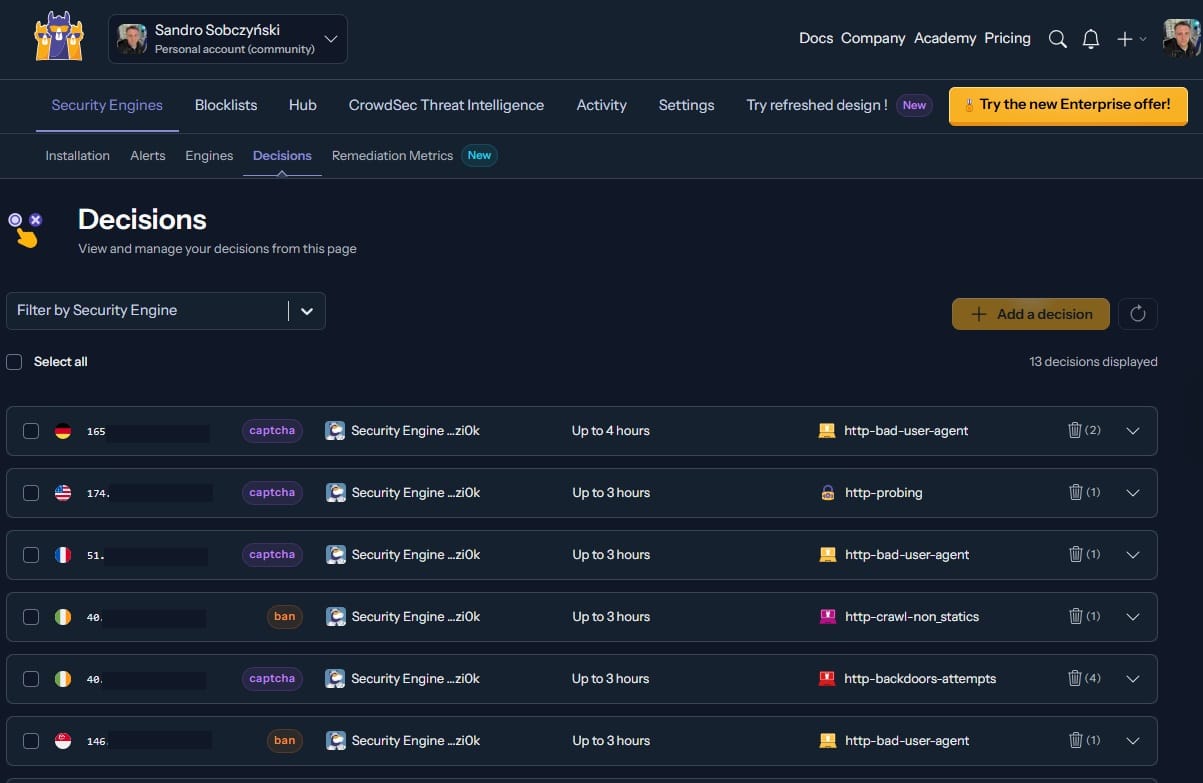

Screenshot showing Crowdsec dashboard

Step 1: Installing CrowdSec

First, install CrowdSec on your Coolify host server:

Bash
apt update
apt upgrade -y
curl -s https://install.crowdsec.net | sudo bash
apt install crowdsec

Verify the installation:

Bash
systemctl status crowdsec

Step 2: Configure CrowdSec for Coolify

Since Coolify uses port 8080, we need to configure CrowdSec to use a different port:

Bash
nano /etc/crowdsec/config.yaml

Modify the api.server.listen_uri section:

YAML
plugin_config:
  user: nobody
  group: nogroup
api:
  client:
    insecure_skip_verify: false
    credentials_path: /etc/crowdsec/local_api_credentials.yaml
  server:
    log_level: info
    listen_uri: 0.0.0.0:8095  # Changed from default 8080
    profiles_path: /etc/crowdsec/profiles.yaml
    console_path: /etc/crowdsec/console.yaml

Important: Change 127.0.0.1 to 0.0.0.0 to avoid connection issues between Docker containers and CrowdSec.

Restart CrowdSec:

Bash
systemctl restart crowdsec

Test the connection from Coolify’s proxy:

Bash
docker exec coolify-proxy wget -qO- http://host.docker.internal:8095/v1/heartbeat

Note: A 401 Unauthorized response is also OK – it means the connection works but we’re not authenticated yet, which is expected at this stage.

Step 3: Install Firewall Bouncer

In Crowdsec, “bouncers” are responsible for blocking traffic and “collections” for analyzing logs
Install the nftables bouncer for system-level protection:

Bash
apt install crowdsec-firewall-bouncer-nftables -y

Verify installation:

Bash
cscli metrics

Look for cs-firewall-bouncer under Local API Bouncers Metrics.
It’s worth to mention that nftables bouncer might have problem with recognizing real IP address if you are using Cloudflare Proxy (traefik-bouncer doesn’t have this problem). So in Cloudflare scenario is worth to replace nftables-bouncer with cloudflare-bouncer

Step 4: Optional CrowdSec Community Integration

While CrowdSec works perfectly in standalone mode, connecting to the community console provides additional benefits:

  • Web-based dashboard
  • Community threat intelligence
  • Geolocation data
  • Shared blocklists

To enroll (optional):

  1. Sign up at https://app.crowdsec.net/signup
  2. Copy the enrollment command from your console
  3. Execute: cscli console enroll XXXXX
  4. Approve the enrollment in the web console

Step 5: Configure Traefik Integration

Generate a bouncer API key for Traefik:

Bash
cscli bouncers add traefik-bouncer

Save the generated key – you’ll need it in the next step.

Create the CrowdSec plugin configuration for Traefik:

Bash
nano /data/coolify/proxy/dynamic/crowdsec-plugin.yaml
YAML
http:
  middlewares:
    crowdsec:
      plugin:
        bouncer:
          crowdsecMode: live
          crowdsecLapiHost: 'host.docker.internal:8095'
          crowdsecLapiKey: 'YOUR_BOUNCER_API_KEY_HERE'
          enabled: true

Step 6: Configure Coolify Proxy

Find the latest version of the Traefik bouncer plugin at https://github.com/maxlerebourg/crowdsec-bouncer-traefik-plugin (check releases tab).

Create directory for access logs:

Bash
mkdir -p /data/coolify/proxy/accesslogs/

Edit the Coolify proxy configuration:

Bash
nano /data/coolify/proxy/docker-compose.yml

Add these command line arguments to the Traefik service:

YAML
name: coolify-proxy
networks:
  coolify:
    external: true
services:
  traefik:
    container_name: coolify-proxy
    # ... existing configuration ...
    command:
      # ... existing commands ...
      - '--experimental.plugins.bouncer.modulename=github.com/maxlerebourg/crowdsec-bouncer-traefik-plugin'
      - '--experimental.plugins.bouncer.version=v1.4.2'  # Use latest version
      - '--accesslog=true'
      - '--accesslog.format=json'
      - '--accesslog.bufferingsize=0'
      - '--accesslog.fields.headers.defaultmode=drop'
      - '--accesslog.fields.headers.names.User-Agent=keep'
      - '--accesslog.filepath=/traefik/accesslogs/access.log'

Note: If you’re using Cloudflare, you might need to add additional labels depending on your setup. The CrowdSec middleware should be compatible with Cloudflare’s proxy.

Bash
      - '--entryPoints.http.forwardedHeaders.insecure=true'
      - '--entryPoints.https.forwardedHeaders.insecure=true'

Important: After editing the docker-compose.yml file, always run:

Bash
docker compose up -d

Debugging Tips

If you encounter issues, check Traefik logs:

Bash
docker logs coolify-proxy

Look for any errors related to plugin loading or configuration. The logs will help identify if there are issues with the CrowdSec plugin setup or access log configuration.

Step 7: Configure Log Rotation

To prevent access logs from growing too large, set up log rotation:

Bash
nano /etc/logrotate.d/traefik
Bash
/data/coolify/proxy/accesslogs/access.log {
  size 10M
  rotate 5
  missingok
  notifempty
  extension .log
  maxage 14
  postrotate
    docker kill --signal="USR1" coolify-proxy
  endscript
}

This configuration:

  • Rotates logs when they reach 10MB
  • Keeps 5 rotated files
  • Deletes logs older than 14 days
  • Signals Traefik to reopen log files after rotation

Move logrotate to run hourly instead of daily:

Bash
mv /etc/cron.daily/logrotate /etc/cron.hourly/
systemctl restart cron

Test the configuration:

Bash
logrotate /etc/logrotate.d/traefik

Step 8: Enable CrowdSec for Your Applications

To protect your Coolify applications with CrowdSec:

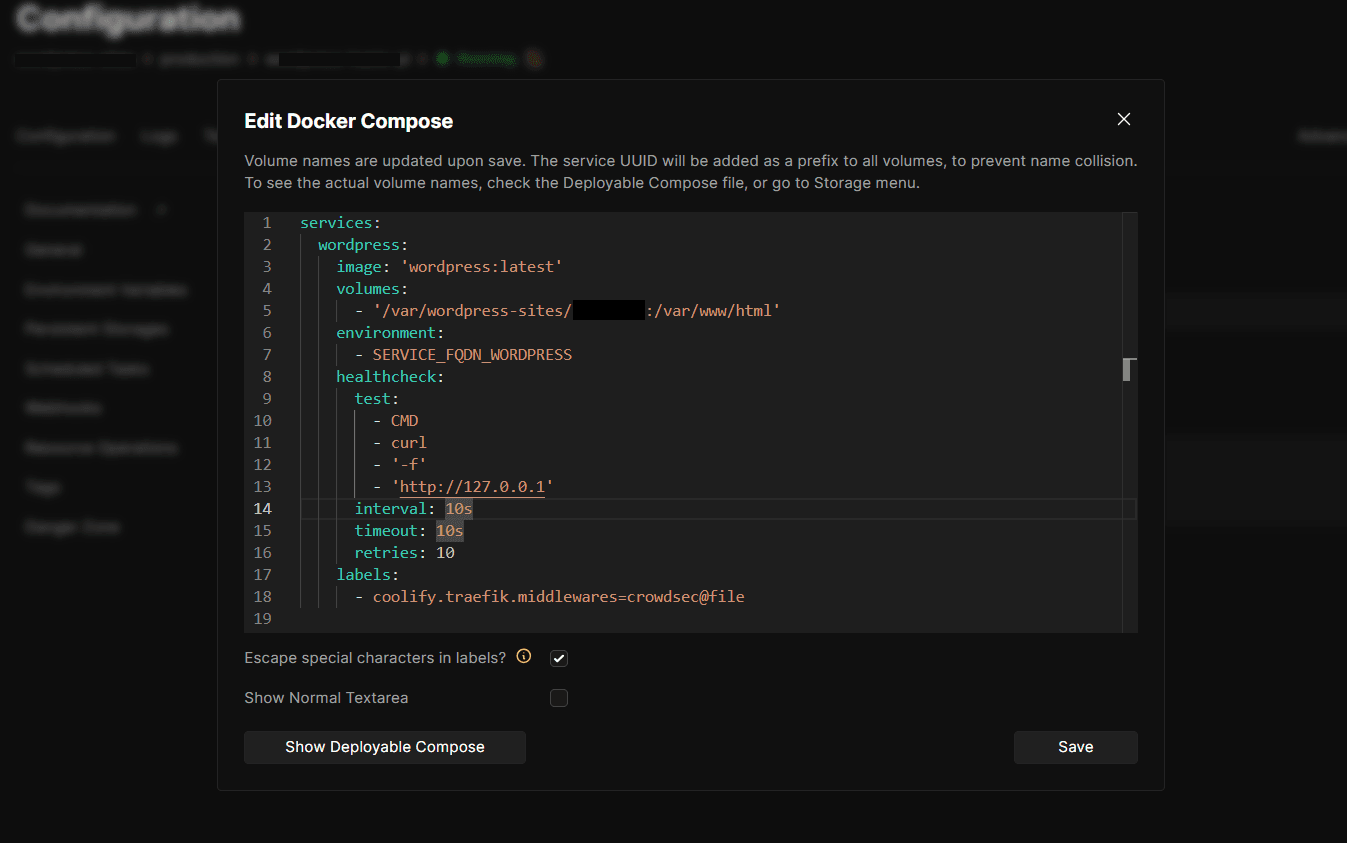

Screenshot showing docker-compose configuration on Coolify dashboard
  1. Go to your Coolify dashboard
  2. Open your website/service
  3. Click “Edit compose file”
  4. Add the CrowdSec middleware label:
Bash
labels:
  - coolify.traefik.middlewares=crowdsec@file

Restart Traefik:

Bash
cd /data/coolify/proxy
docker compose up -d
docker restart coolify-proxy

Step 9: Configure Log Analysis

Install the Traefik collection for log parsing:

Bash
cscli collections install crowdsecurity/traefik
systemctl reload crowdsec

Configure CrowdSec to analyze Traefik logs:

Bash
nano /etc/crowdsec/acquis.yaml

Add:

YAML
---
filenames:
  - /data/coolify/proxy/accesslogs/access.log
labels:
  type: traefik

Restart both services:

Bash
docker restart coolify-proxy
systemctl restart crowdsec

Step 10: Testing Your Setup

Test the configuration to ensure everything is working properly.

Check Access Logs

Monitor /data/coolify/proxy/accesslogs/access.log for incoming requests:

Bash
tail -f /data/coolify/proxy/accesslogs/access.log | jq

Test IP Blocking

⚠️ Important: Use a different device and network (like your phone with mobile data) to avoid accidentally blocking yourself!

From another device, note your IP address by visiting your website, then manually block that IP for testing:

Bash
cscli decisions add -i YOUR_TEST_IP -d 10m

Verify Protection

Try accessing your site from the blocked IP – it should be denied.

Remove Test Block

Clean up the test by removing the block:

Bash
cscli decisions remove -i YOUR_TEST_IP

Advanced Features

CAPTCHA Integration

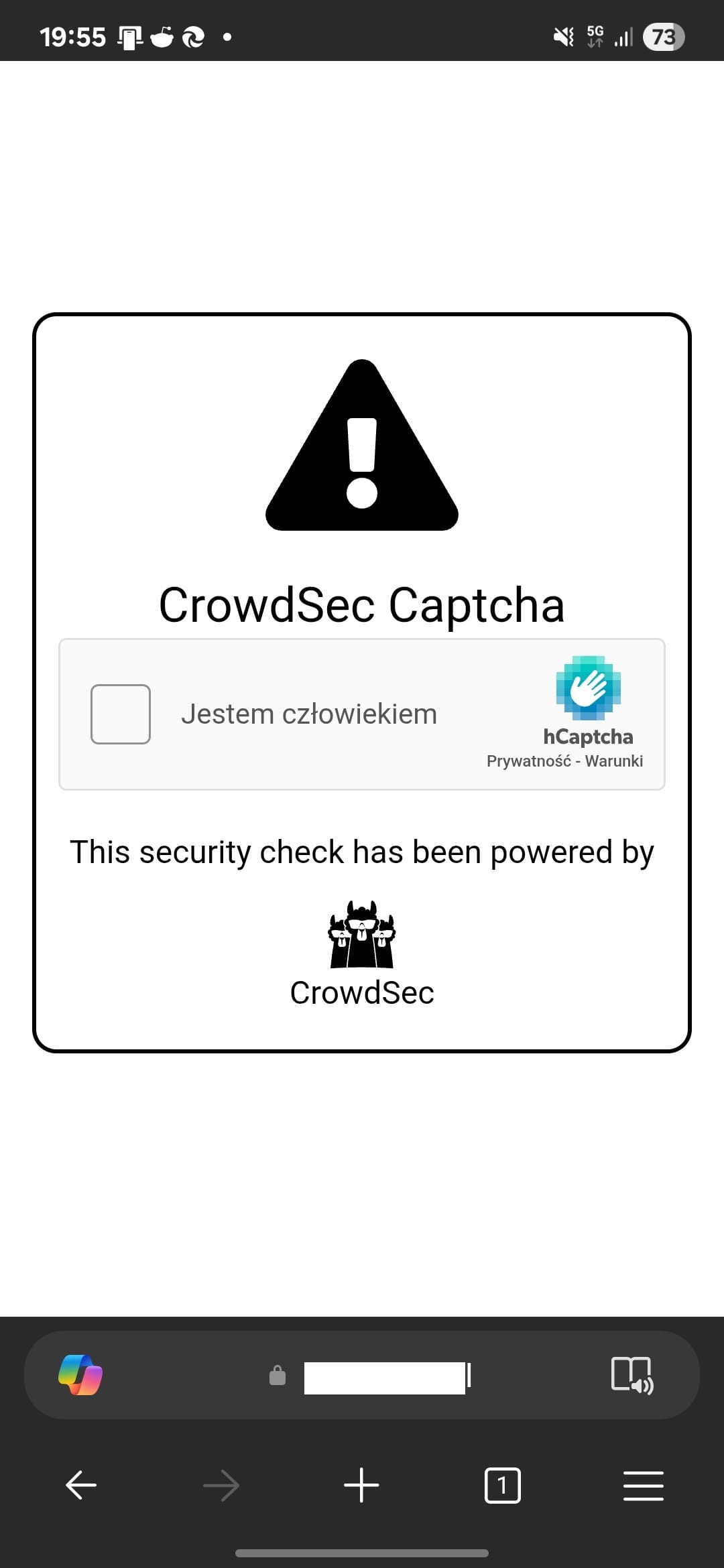

Screenshot showing Captcha challenge from Crowdsec

For sophisticated attack mitigation, configure CAPTCHA challenges:

Download CAPTCHA template:

Bash
wget https://raw.githubusercontent.com/maxlerebourg/crowdsec-bouncer-traefik-plugin/main/captcha.html -O /data/coolify/proxy/dynamic/captcha.html

Sign up for hCaptcha at https://www.hcaptcha.com and get your site key and secret key.

Configure CAPTCHA profile:

Bash
nano /etc/crowdsec/profiles.yaml
YAML
name: captcha_remediation
filters:
  - Alert.Remediation == true && Alert.GetScope() == "Ip" && Alert.GetScenario() contains "http" && GetDecisionsSinceCount(Alert.GetValue(), "24h") <= 3
decisions:
 - type: captcha
   duration: 4h
notifications:
 - discord
on_success: break
---

Update bouncer configuration:

Bash
nano /data/coolify/proxy/dynamic/crowdsec-plugin.yaml
YAML
http:
  middlewares:
    crowdsec:
      plugin:
        bouncer:
          crowdsecMode: live
          crowdsecLapiHost: 'host.docker.internal:8095'
          crowdsecLapiKey: 'YOUR_API_KEY_HERE'
          enabled: true
          captchaProvider: hcaptcha
          captchaSiteKey: YOUR_HCAPTCHA_SITE_KEY
          captchaSecretKey: YOUR_HCAPTCHA_SECRET_KEY
          captchaHTMLFilePath: /traefik/dynamic/captcha.html

Test CAPTCHA Functionality

⚠️ Important: Use a different device and network (like your phone with mobile data) to test CAPTCHA functionality safely!

Add a CAPTCHA decision for your test IP:

Bash
cscli decisions add --ip YOUR_TEST_IP -d 10m -t captcha

Visit your website from that IP to see the CAPTCHA challenge in action.

Remove the test CAPTCHA when done:

Bash
cscli decisions remove --ip YOUR_TEST_IP -t captcha

Free bonus content!

If you want to get my script for automatically patching such a Coolify server for free, sign up for my newsletter!
I wrote this script to make it quick and just one click away. After signing up, you’ll receive a link to the bonus section of my articles.
Thanks!

Discord Notifications

Get instant alerts about security events:

Screenshot showing Discord notifications from Crowdsec

Create the notification configuration file:

Bash
nano /etc/crowdsec/notifications/discord.yaml
YAML
type: http
name: discord
log_level: info
format: |
  {
    "embeds": [
      {
        "title": "🚨 CrowdSec Security Alert",
        "color": 15158332,
        "description": "{{range . -}}{{$alert := . -}}{{range .Decisions -}}**IP**: `{{.Value}}`\n**Action**: {{.Type}}\n**Duration**: {{.Duration}}\n**Scenario**: {{.Scenario}}\n\n🔍 **Quick Analysis:**\n [Whois](https://www.whois.com/whois/{{.Value}}) | [Shodan](https://www.shodan.io/host/{{.Value}}) | [AbuseIPDB](https://www.abuseipdb.com/check/{{.Value}}) | [VirusTotal](https://www.virustotal.com/gui/ip-address/{{.Value}})\n\n{{end -}}{{end -}}",
        "footer": {
          "text": "CrowdSec Security Engine"
        }
      }
    ]
  }
url: YOUR_DISCORD_WEBHOOK_URL_HERE
method: POST
headers:
  Content-Type: application/json

4. Enable Notifications in Profiles

Edit the profiles configuration:

Bash
nano /etc/crowdsec/profiles.yaml

Add to the default profile:

YAML
name: default_ip_remediation
filters:
 - Alert.Remediation == true && Alert.GetScope() == "Ip"
decisions:
 - type: ban
   duration: 12h
notifications:
 - discord
on_success: break

Test Discord Notifications

Restart CrowdSec and test the notification system:

Bash
systemctl restart crowdsec
cscli notifications test discord

Allowlist Configuration

Prevent accidental blocking of legitimate traffic. It is very important, because sometimes Crowdsec might ban our server (oops!), during WordPress updates etc

Bash
nano /etc/crowdsec/parsers/s02-enrich/whitelists.yaml
YAML
name: crowdsecurity/whitelists
description: "Whitelist events from private ipv4 addresses"
whitelist:
  reason: "private ipv4/ipv6 ip/ranges"
  ip:
    - "::1"
    - "YOUR_SERVER_IP_HERE"      # Add your server's public IP
    - "YOUR_HOME_IP_HERE"        # Add your home/office IP if you have static
  cidr:
    - "127.0.0.0/8"
    - "192.168.0.0/16"
    - "10.0.0.0/8"
    - "172.16.0.0/12"

Monitoring and Maintenance

Regular Checks

Monitor your CrowdSec installation:

Bash
# Check CrowdSec status
systemctl status crowdsec

# View current decisions
cscli decisions list

# Check metrics
cscli metrics

# View alerts
cscli alerts list

Log Analysis

Monitor what CrowdSec is detecting:

Bash
# Recent alerts
cscli alerts list -l 10

# Decisions by scenario
cscli decisions list --json | jq '.[] | .scenario' | sort | uniq -c

# Top blocked IPs
cscli decisions list --json | jq -r '.[] | .value' | sort | uniq -c | sort -nr | head -10

Troubleshooting

Common Issues

  1. Connection refused from Traefik to CrowdSec:
    • Ensure listen_uri is set to 0.0.0.0:8095
    • Check firewall rules
    • Verify the bouncer API key
  2. No decisions being made:
    • Check if Traefik logs are being written
    • Verify acquis.yaml configuration
    • Ensure Traefik collection is installed
  3. False positives:
    • Add legitimate IPs to whitelist
    • Adjust scenario thresholds
    • Review and tune profiles
  4. CAPTCHA not working:
    • Verify hCaptcha keys are correct
    • Check captcha.html file path
    • Ensure domains are configured in hCaptcha

Conclusion

You now have a comprehensive security setup that includes:

  • Real-time threat detection through CrowdSec’s behavioral analysis
  • Community intelligence sharing and receiving threat data
  • Flexible remediation with bans, CAPTCHA challenges, and rate limiting
  • Instant notifications via Discord for security events
  • System-level protection through firewall integration
  • Application-level protection through Traefik middleware
  • Intelligent whitelisting to prevent blocking legitimate traffic
  • Comprehensive logging and monitoring for security insights

Thats it! Your Coolify installation is now protected by CrowdSec!

Join the Newsletter

Subscribe to get bonus content. Don’t miss new articles.

    We won’t send you spam. Unsubscribe at any time.

    Built with Kit

    Related Posts

    Leave a Comment

    Your email address will not be published. Required fields are marked *

    Start typing and press enter to search

    Scroll to Top
